Optical distribution frame(ODF)

Optical distribution frame(ODF)


Data Sheets

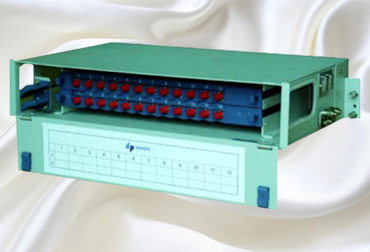

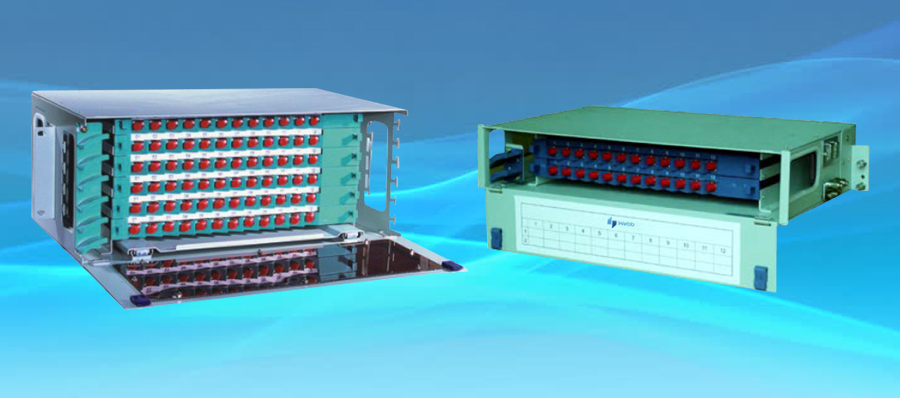

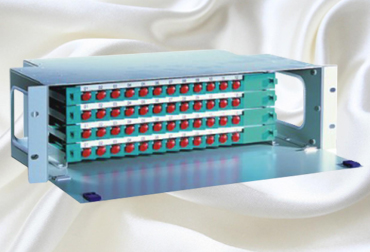

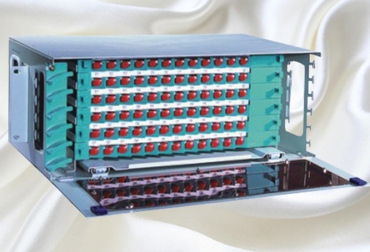

Optical distribution frame(ODF) is used in 19” standard cabinet, with immense thickness, substantial space and full front operation optical fibre splicing and distribution unit. It is malleable for installation and operation, Suitable for FC, SC, LC, ST adapters, ribbon, bundle and non-ribbon optical cable. The stature of the box is 1U-4U, malleable for 12-96 core optical fibre.


Features

  • Comprehensive static coating
  • Full module design, composed of 12 core splicing and distribution one-body module
  • Suitable for ribbon and non-ribbon optical cable
  • Suitable for FC, SC, ST, LC adapters
  • The splicing and distribution module can be drawn out, user friendly operation
  • The radius of the fibre is 40mm and cable should be ≥40mm
  • Marked splicing and distribution points
  • ODF can be used for wall mount as well as rackmount application

Technical Specifications

  • Operation temperature: -5°c - +40°c
  • Storage temperature: -25°c - +55°c
  • Relative humidity: ≤85% (+30°c)
  • Atmospheric pressure: 70-106Kpa
  • Main photoelectricity specification
  • Work wavelength: 850nm,1310nm,1550nm
  • Insertion loss (with adapter and pigtail): ≤0.3dB
  • Return loss: PC≥49dB, UPC≥50dB, APC≥60dB

    • *This optical distribution frame is suitable for indoor use only.

Ordering Information



*Specifications are subject to change without notice based on technical recommendations and related product enhancements
